Ready on your schedule.
Maintain spa or hot-tub temperature with inverter output that adjusts to changing demand.
Arctic heat pumps · supplied + installed

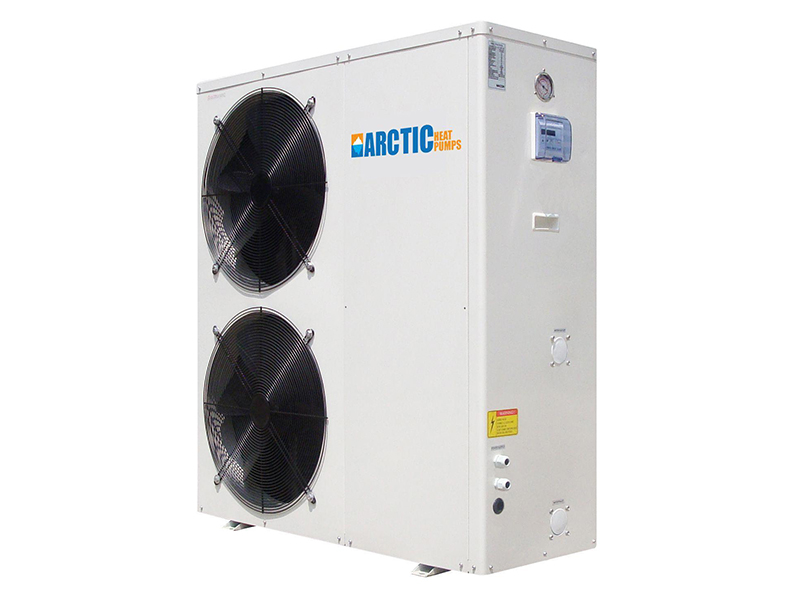

Arctic heat pumps for hot tubs, pools and spas.
Explore Arctic’s inverter heat-and-chill equipment with published model data, then have West County size and install the system for a Sonoma County or North Bay property.
ApplicationsPool · Spa · Hot tub · Cold plunge
Product familyFive published models
Operating modeHeating + cooling
Local scopeSupply + installation
Private comfort, planned properly
Water temperature on your terms.
Arctic’s inverter line moves heat into or out of the water. West County turns that equipment into a discreet residential installation plan based on the hot tub, property, plumbing, power and the way you want to use it.
One property, more uses.
Support cold-plunge and cooling applications with the same heat-pump platform when the site calls for it.

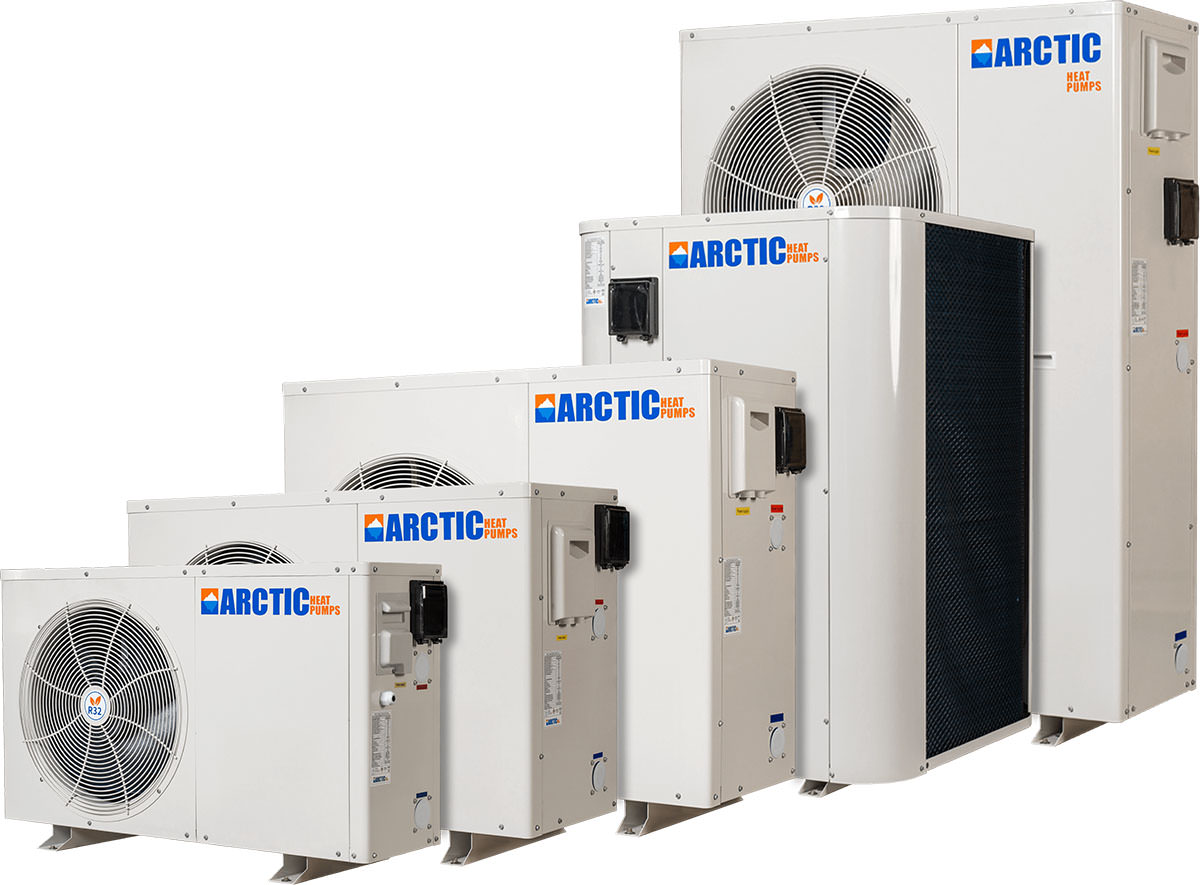

Arctic equipment family
Selected for the property. Installed around the experience.
The unit should fit the water load without taking over the outdoor space. West County evaluates capacity, sound, airflow, access and the route between the heat pump and the hot tub before final selection.
Published Arctic features
Built around control, water and outdoor operation.

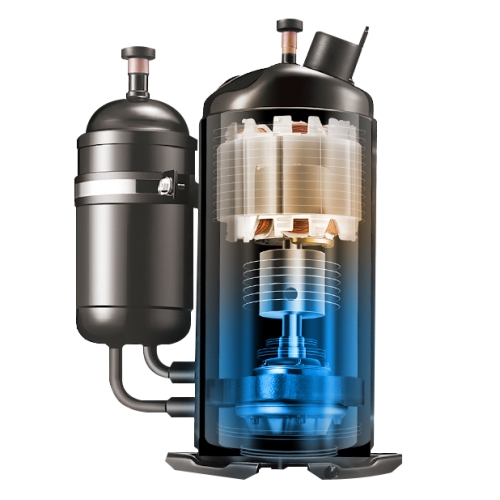

01DC inverter
Variable compressor and brushless fan operation match output to changing demand.

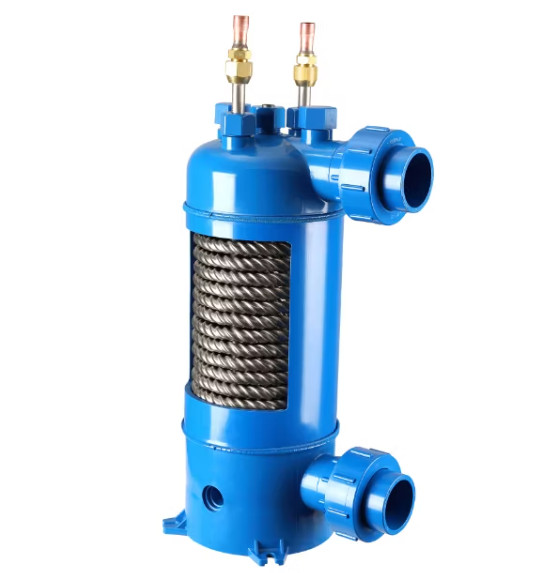

02Titanium exchanger
A spiral titanium heat exchanger separates the refrigerant circuit from spa water.

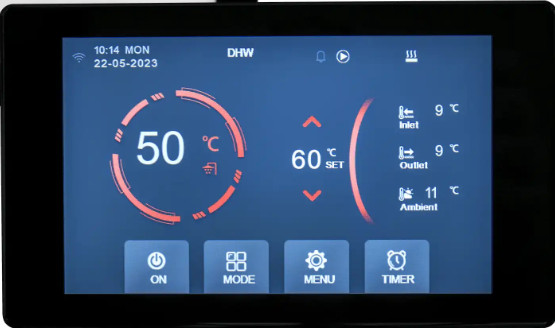

03Wi-Fi touch control
Arctic publishes an LCD touch controller with Wi-Fi control for the product family.

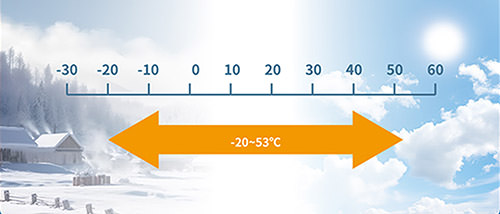

04Cold-weather logic
Intelligent defrost supports manufacturer-published operation down to -4°F (-20°C).
05Heat + chill
The same inverter platform supports heating and cooling applications.
Model range
Start with load, not a guess.
Published ratings shown at 80.6°F ambient air and 80°F outlet water. Capacity, COP, sound and recovery change with operating conditions.
| Arctic model | Rated heating capacity | Published COP | Published sound |
|---|---|---|---|
| 015ZA/(B)-R32 | 7.5 kW | 6.3 | 48 dB(A) |
| 025ZA/(B)-R32 | 12.5 kW | 6.9 | 52 dB(A) |
| 040ZA/(B)-R32 | 18.0 kW | 6.0 | 54 dB(A) |
| 060ZA/(B)-R32 | 28.0 kW | 6.4 | 54 dB(A) |
| 080ZB/(B)-R32 | 35.3 kW | 5.4 | 58 dB(A) |
Source: Arctic Inverter Pool Heat Pump Specifications ↗. Final selection requires site-specific sizing.
West County installation path
Equipment is only one part of the system.
- 01Size the application
Water volume, target temperature, climate, cover and recovery expectations.

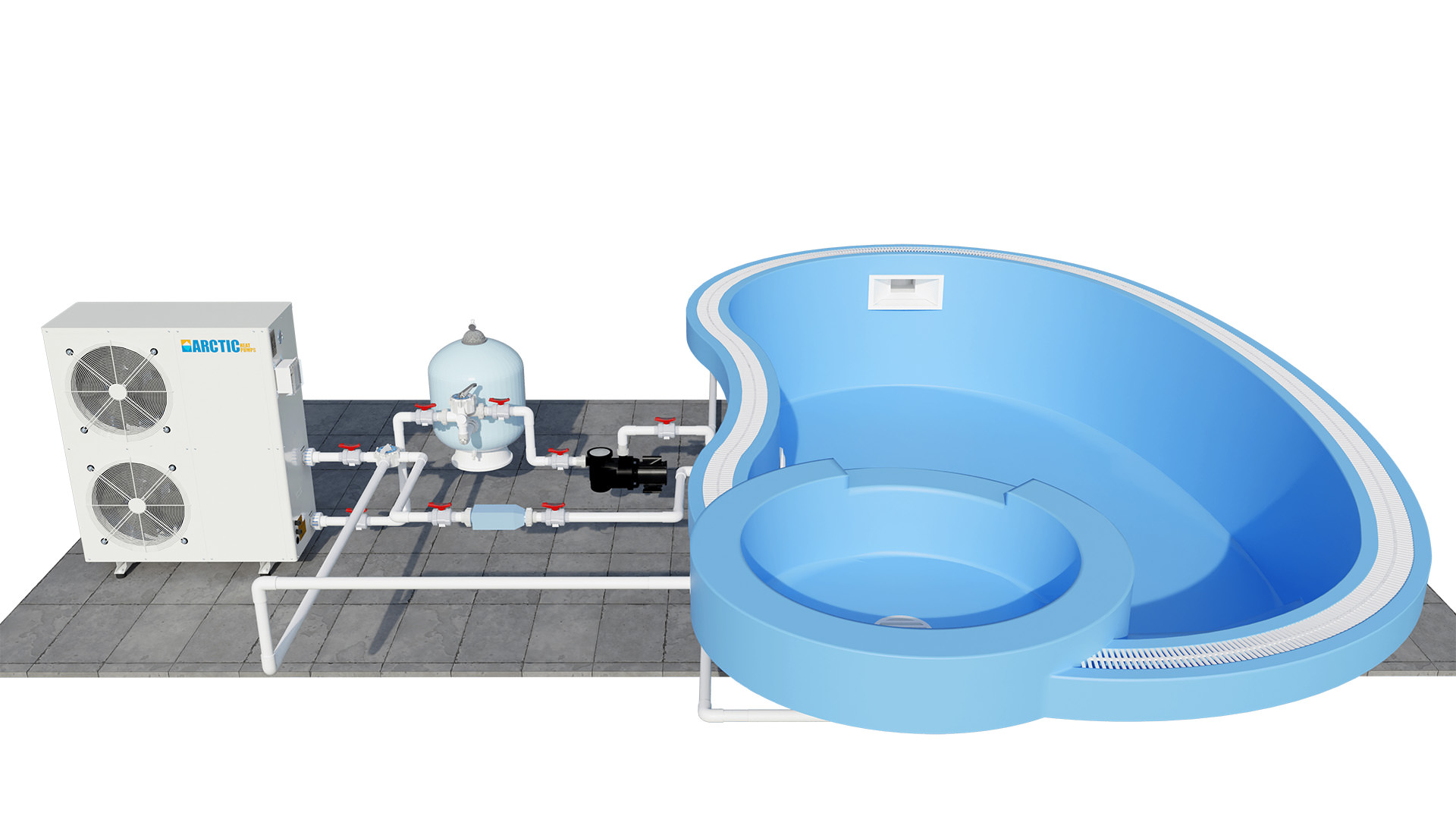

- 02Plan the connections
Equipment location, circulation, bypass, valves and condensate management.
- 03Coordinate power
Confirm the selected model’s required electrical supply and supporting trade scope.
- 04Commission the system
Startup, flow verification, controller setup and an operating handoff.
Can an Arctic heat pump both heat and cool water?+
Yes. Arctic publishes this inverter product family for water heating and cooling, including pool, spa, hot-tub and cold-plunge applications.
Which model do I need?+
Selection depends on water volume, desired temperature, ambient conditions, cover, usage, plumbing and recovery expectations. West County sizes the application before quoting equipment.
What does COP mean in the model table?+
Coefficient of performance compares heat delivered with electrical power consumed at a stated test condition. A higher published COP indicates more heat moved per unit of electricity at that condition; it is not a promise of annual operating cost.
Can it be used with salt water?+
The product family uses a spiral titanium heat exchanger. Water chemistry and equipment compatibility still need to follow Arctic’s current installation and maintenance guidance.
How cold can the outside air be?+
Arctic publishes low-ambient operation down to -4°F (-20°C). Actual output, efficiency and recovery time change with air and water conditions.
What warranty applies?+
Warranty terms can vary by model and purchase documentation. The installed quote will identify the manufacturer warranty that applies to the selected equipment.
North Bay sizing + installation
Tell us what you want the water to do.
Share the pool, spa, hot-tub or cold-plunge volume, location, current equipment and target temperature. West County will confirm the next step.
